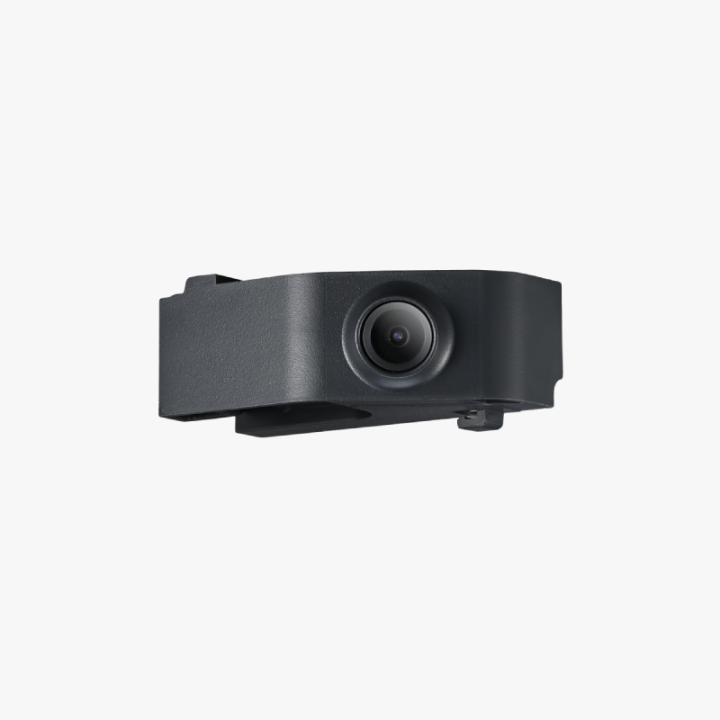

P1 - Chamber Camera & LED
220.00
Availability:
In stock
SKU
CAM002+FAZ004
Overview
The LED light can illuminate an indoor camera or the interior of a printer. The chamber camera has traditional timelapse
function. This
camera is used as a replacement part. It does not upgrade the camera quality or FPS for the printer.
-
Traditional Timelapse: This feature uses the chamber camera to automatically create a time-lapse video of a print and make
an innovative video (Available
only on the local network). The Smooth time-lapse is still under development as well as Spaghetti
Detection. Please stay tuned!
The LED light can illuminate an indoor camera or the interior of a printer. The chamber camera has traditional timelapse function. This camera is used as a replacement part. It does not upgrade the camera quality or FPS for the printer.
- Traditional Timelapse: This feature uses the chamber camera to automatically create a time-lapse video of a print and make an innovative video (Available only on the local network). The Smooth time-lapse is still under development as well as Spaghetti Detection. Please stay tuned!
Compatibility
P1 Series Exclusive
P1 Series Exclusive
Installation
1. To complete the installation of the and LED light, you'll need to 3D print the light shell (with PLA) using
the 3MF files provided on the Wiki
2. Once you've printed the shell, proceed to install it with the camera in the chamber. Please
check the installation below
1. To complete the installation of the and LED light, you'll need to 3D print the light shell (with PLA) using the 3MF files provided on the Wiki
2. Once you've printed the shell, proceed to install it with the camera in the chamber. Please check the installation below
Product Specification
FOV
119°
Resolution
Ratio
1280*720
Frame
rate
0.5
Pixel
count
1M
Focal
length
2.50 MM
Aperture
F2.2
LED
Input voltage
5V
Filming
range
5cm - 30cm
Working
Temperature
0℃ to 60℃
Color
Black
Product
weight
50 g
Package
size
190*230*35 mm
| FOV | 119° | Resolution Ratio | 1280*720 |
| Frame rate | 0.5 | Pixel count | 1M |
| Focal length | 2.50 MM | Aperture | F2.2 |
| LED Input voltage | 5V | Filming range | 5cm - 30cm |
| Working Temperature | 0℃ to 60℃ | Color | Black |
| Product weight | 50 g | Package size | 190*230*35 mm |
More Information
| Manufacturer | Bambu Lab |
|---|
